VLX 80 Fixed / Picture Window

VLX 80 Fixed / Picture Window in Houston, TX | Meridian Windows and Doors Houston

The VLX 80 Fixed / Picture Window is the model Houston homeowners choose when the view matters more than anything else. It doesn’t open, tilt, or slide. What it does is disappear. A maximally glazed aluminum frame with no visible hardware means the glass runs nearly edge to edge, top to bottom, side to side. If you’re building a modern home in Montrose, remodeling a mid-century in Meyerland, or replacing a dated bay window in Memorial, this is the window that turns a wall into a painting. Meridian Windows and Doors Houston is an authorized ViewLux installation partner, which means we sell, size, and install this product per the manufacturer’s exacting standards. Call (432) 278-2282 to discuss your project and schedule a free on-site measurement.

Call (432) 278-2282

Product Overview – VLX 80 Fixed / Picture Window

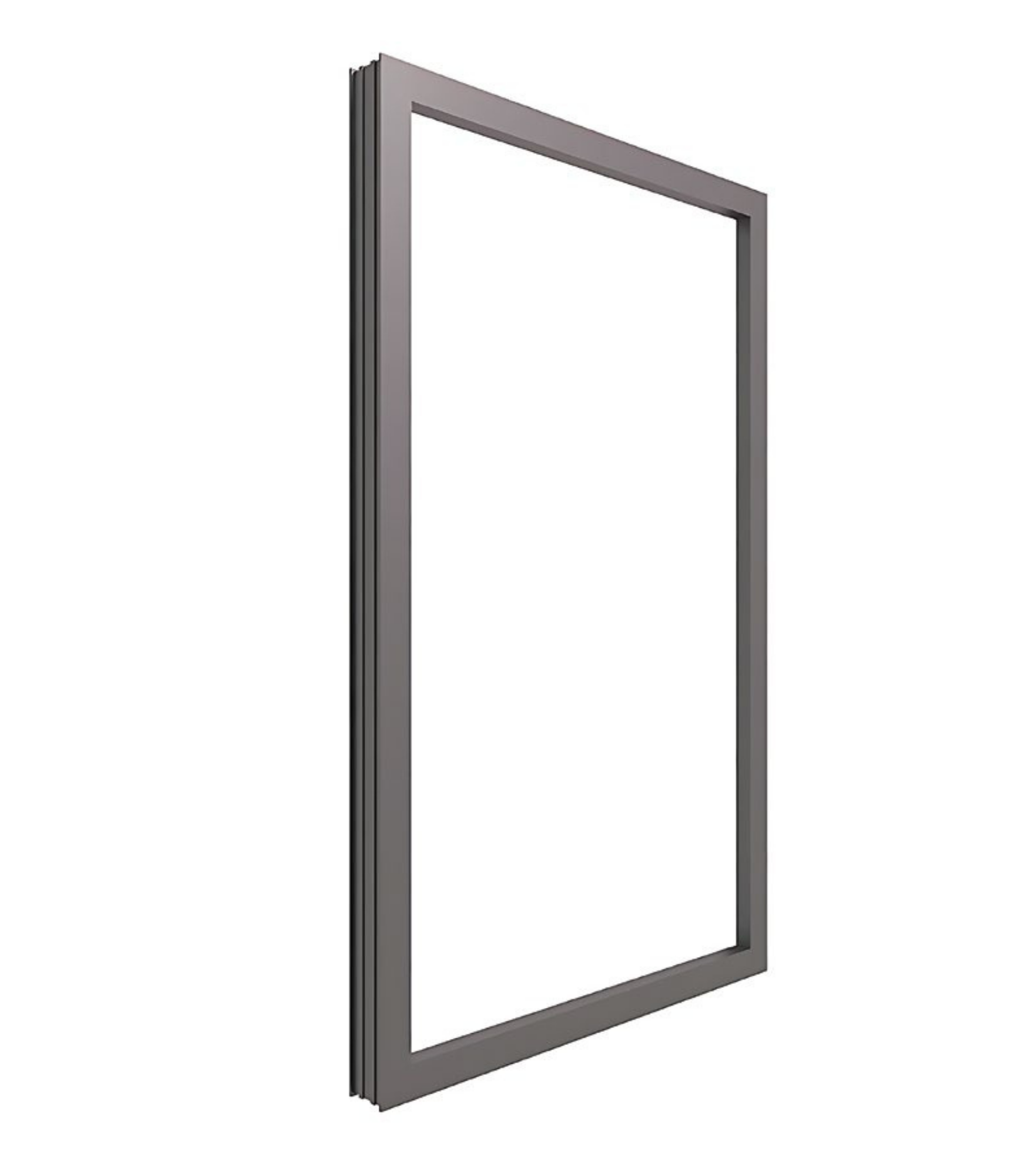

Most windows are compromises between glass and frame. The VLX 80 refuses that trade-off. The aluminum profile measures just under two inches wide at 1.97″, which lets the glazing dominate the opening. There’s no sash, no operator, no crank, no lock assembly interrupting the sightline. No visible hardware at all. The result is a clean architectural plane that works equally well as a single statement window or ganged together in multi-panel configurations reaching up to 120″ wide per unit.

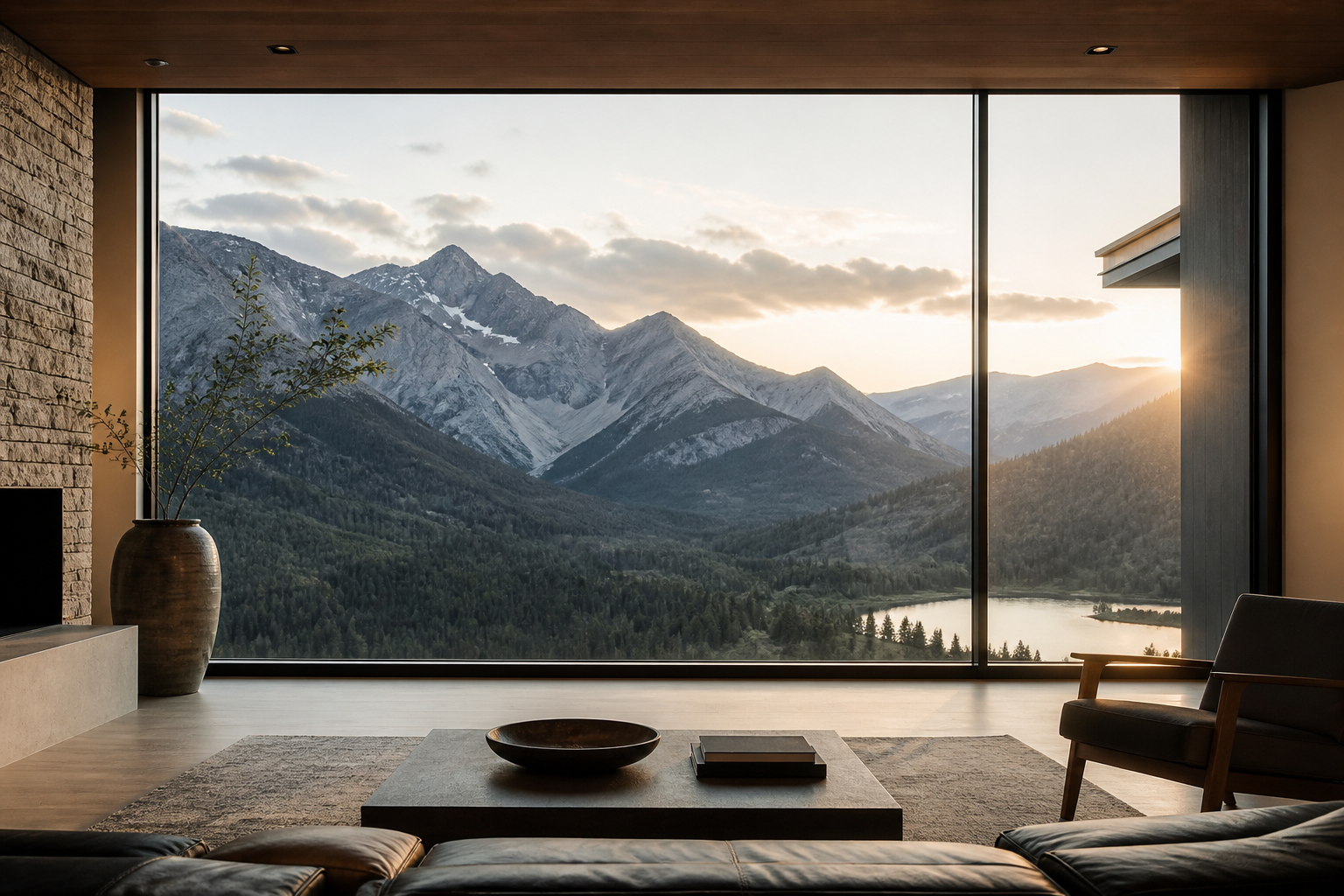

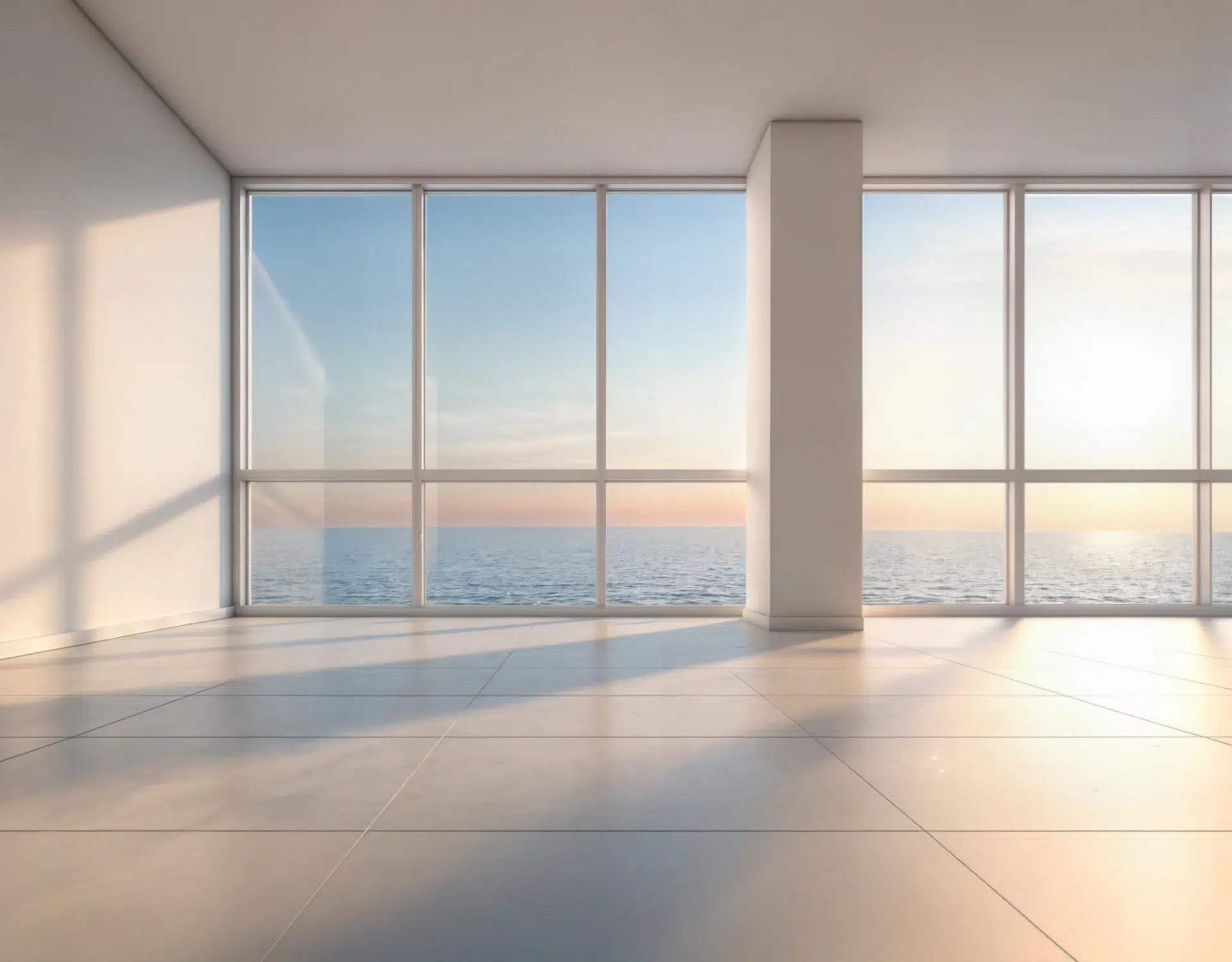

This is the window spec’d for floor-to-ceiling installations, stairwell feature walls, and living rooms that face something worth looking at: a backyard oak canopy in The Woodlands, downtown skyline views from a Galleria-area high-rise, a poolscape in Sugar Land. Because it’s fixed, the VLX 80 achieves a tighter seal than operable windows ever can. Fewer moving parts means fewer air leaks, less maintenance, and a structure that stays rigid through decades of Houston heat and humidity cycles.

We recommend this series to clients who want maximum daylight, true unobstructed visibility, and a modern aesthetic that doesn’t fight the architecture. It’s particularly popular in contemporary builds where black aluminum frames pair with white walls and wide-plank floors. But we’ve also installed VLX 80 units in traditional Houston brick homes, where an anodized silver or bronze finish blends with existing trim work. The product’s strength is its flexibility across design languages.

The wall thickness of 0.079″ is a serious specification. In plain terms, that’s a frame wall nearly as thick as a credit card is wide, and it gives the extrusion the torsional rigidity needed for large spans without excessive deflection. When you’re looking at a 10-foot-wide picture window, the last thing you want is a frame that flexes under wind load. The VLX 80 holds its line. That’s why we’re comfortable installing it in Houston, where storm-driven gusts test every building envelope.

Technical Specifications

Here’s what the VLX 80 Fixed / Picture Window brings to the table, in numbers that matter for real-world Houston performance:

These specifications translate directly into what you’ll experience living with the window: a tight, quiet, stable glazing system that handles Houston’s worst weather without drama. The fixed design means the weather stripping never wears out, because there’s no moving sash to compress it. That’s a longevity advantage every Houston homeowner can appreciate after a few muggy summers.

Performance Features

Thermal Efficiency – The VLX 80 uses a thermal break in the aluminum extrusion, which interrupts the conductive path that would otherwise transfer outdoor heat through the frame into your living space. Combined with Low-E glass, this keeps east- and west-facing Houston rooms noticeably cooler in July and August. NFRC-rated performance data confirms the energy improvements over non-thermal-break aluminum systems.

Acoustic Performance – A fixed window seals tighter than any operable counterpart, and that pays off if you live near a freeway, a flight path, or just a busy street in the Heights. Laminated glass adds another layer of sound dampening, effectively reducing the transmission of traffic and aircraft noise into the home.

Airtightness & Weather Seal – Because there’s no opening mechanism, the VLX 80 achieves exceptional air infiltration resistance. The glazing is set into the frame with a continuous seal, and the frame itself is anchored into your wall with a full perimeter air barrier. Less air movement means fewer drafts and lower humidity intrusion.

Waterproofing – Houston gets more than 45 inches of rain per year, and a window that leaks is a window that fails. The VLX 80’s drainage design, combined with AAMA 812-compliant low-expansion foam sealing on every perimeter joint, creates a moisture barrier that keeps water on the outside where it belongs. No mist, no seepage, no rot in the rough opening.

Wind Resistance – The 0.079″ wall thickness matters when a squall line moves through. The VLX 80 is wind-load rated for the Houston region’s code requirements, and the option of laminated impact-resistant glass lets homeowners in designated wind zones meet stricter structural mandates without changing the window’s architectural profile.

Security & Hardware – The phrase “zero visible hardware” doesn’t mean zero security. The VLX 80’s glazing is seated deep into the frame and secured from the interior, making exterior access to the glass edge difficult. Tempered or laminated glass options add significant resistance to forced entry. For a fixed window, the security story is simple: there’s nothing to pry open.

Color & Glass Options

Premium Black is the most requested finish in Houston right now, particularly for modern farmhouse and contemporary builds where dark frames create definition against light siding. Pure White suits traditional Houston homes and pairs well with existing white trim. Anodized Silver reads as architectural and commercial, and it’s a favorite for mid-century restorations. Bronze works beautifully with brick exteriors, which describes a large portion of Houston’s housing stock. Champagne offers a warm metallic tone for upscale interiors. Teak Wood is a textured finish that mimics natural wood grain while keeping aluminum’s durability, ideal for clients who want warmth without the maintenance of real wood frames.

On the glass side, clear is the default for maximum light. Low-E is our standard recommendation for Houston because it cuts solar heat gain without visibly darkening the view. Frosted glass adds privacy for bathrooms and street-facing installations. Tempered is required by code in certain locations, including windows near doors and floor-to-ceiling installations close to the floor. Laminated provides impact resistance and sound deadening. Gray tint cuts glare in rooms with heavy western sun exposure. Black tint is a bold architectural choice that works well on contemporary facades.

Installation by Meridian Windows and Doors Houston in Houston

We’ll be direct about this: the VLX 80 only performs as designed when it’s installed correctly. A premium fixed window set into an opening that’s out of square, shimmed poorly, or sealed with the wrong materials will fail at the perimeter, not at the glass. That’s why Meridian Windows and Doors Houston follows a disciplined process on every installation in the Houston area.

It starts with a pre-installation inspection of the rough opening. We check the framing for level, plumb, and square before the window ever comes off the truck. If the opening needs adjustment, we correct it then, not after. The VLX 80 goes in dead level on all planes, shimmed at the anchor points per the manufacturer’s engineering, and secured with fasteners that penetrate into structural framing, never just the trim.

The perimeter seal is where many installers cut corners and homeowners pay for it later. We use AAMA 812-compliant low-expansion polyurethane foam on every perimeter joint, applied at the proper depth and density. This isn’t a cosmetic caulk line. It’s the air and water barrier that separates your conditioned interior from Houston’s outdoor weather. Incorrect foam application can bow frames and void warranties. We’ve corrected it on frames installed by other companies around Houston, including Bellaire, Katy, and Pearland.

Our crews work to the AAMA 2400/2410 installation standard, which exists for a reason: it’s the best-practice protocol for installing fenestration products so they actually perform at their rated values. After the frame is secured and sealed, we do a final water test on the exterior, inspect the interior trim plane, and clean the job site completely. You’ll get a walkthrough of the finished installation with a Meridian Windows and Doors Houston project lead, so you can see exactly what was done behind the trim.

Houston-specific factors play into every install. Extreme heat cycling means the foam sealant must be rated for temperature swings. High humidity means the air barrier has to be continuous, or condensation will form inside wall cavities. Building codes in incorporated Houston and neighboring cities reference the same window installation standards, but inspection requirements vary, and we’re familiar with how each jurisdiction operates.

Frequently Asked Questions – VLX 80 Fixed / Picture Window

Get a Quote – VLX 80 Fixed / Picture Window in Houston

If the VLX 80 sounds like the right window for your home, the next step is a free on-site measurement and consultation. We’ll bring finish samples and glass options to your home anywhere in the Houston metro area, take precise measurements, and give you a written line-item quote with no change orders down the road. Call (432) 278-2282 to start your project.
