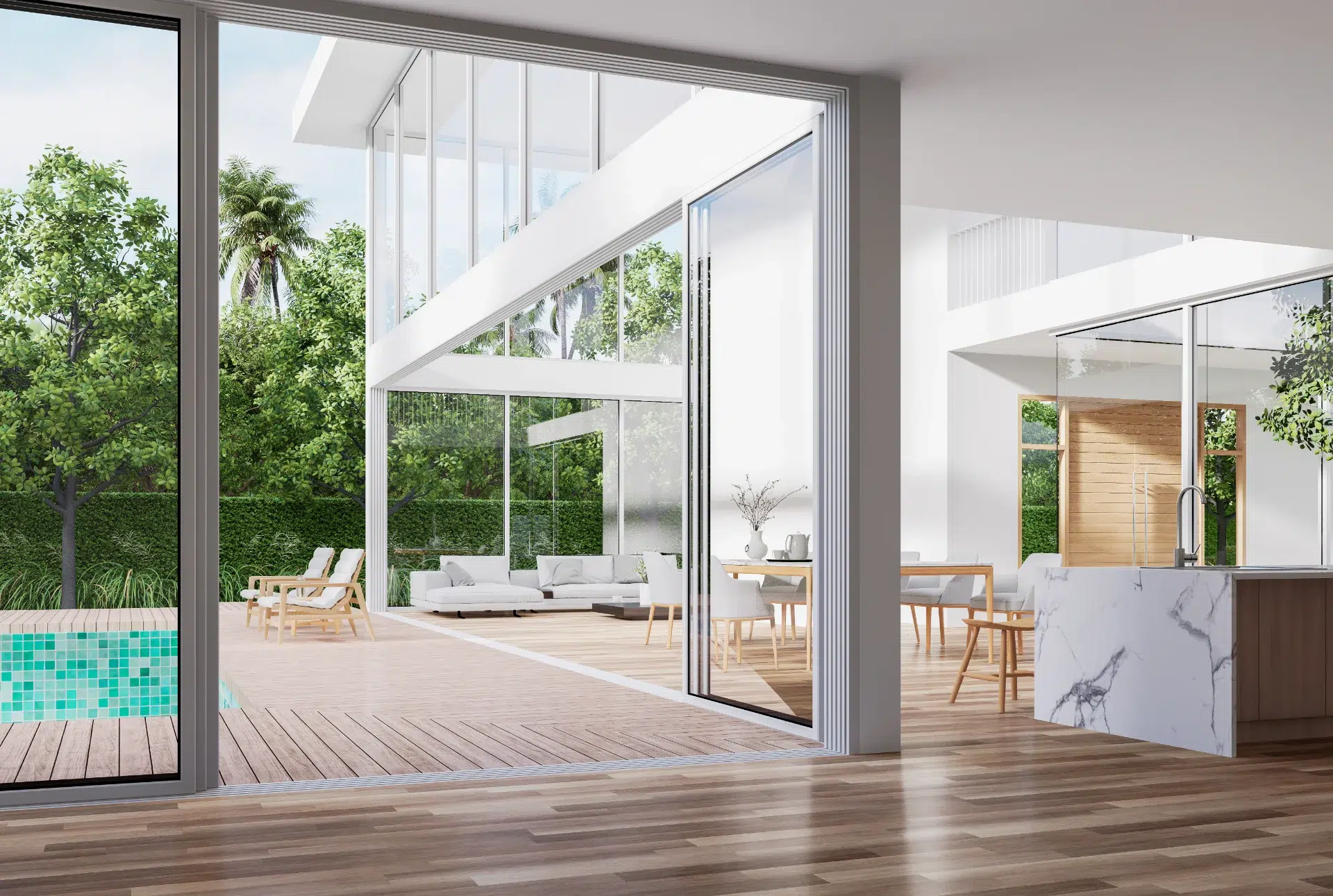

VLX 138 Panoramic Sliding Door

VLX 138 Panoramic Sliding Door in Houston, TX | Meridian Windows and Doors Houston

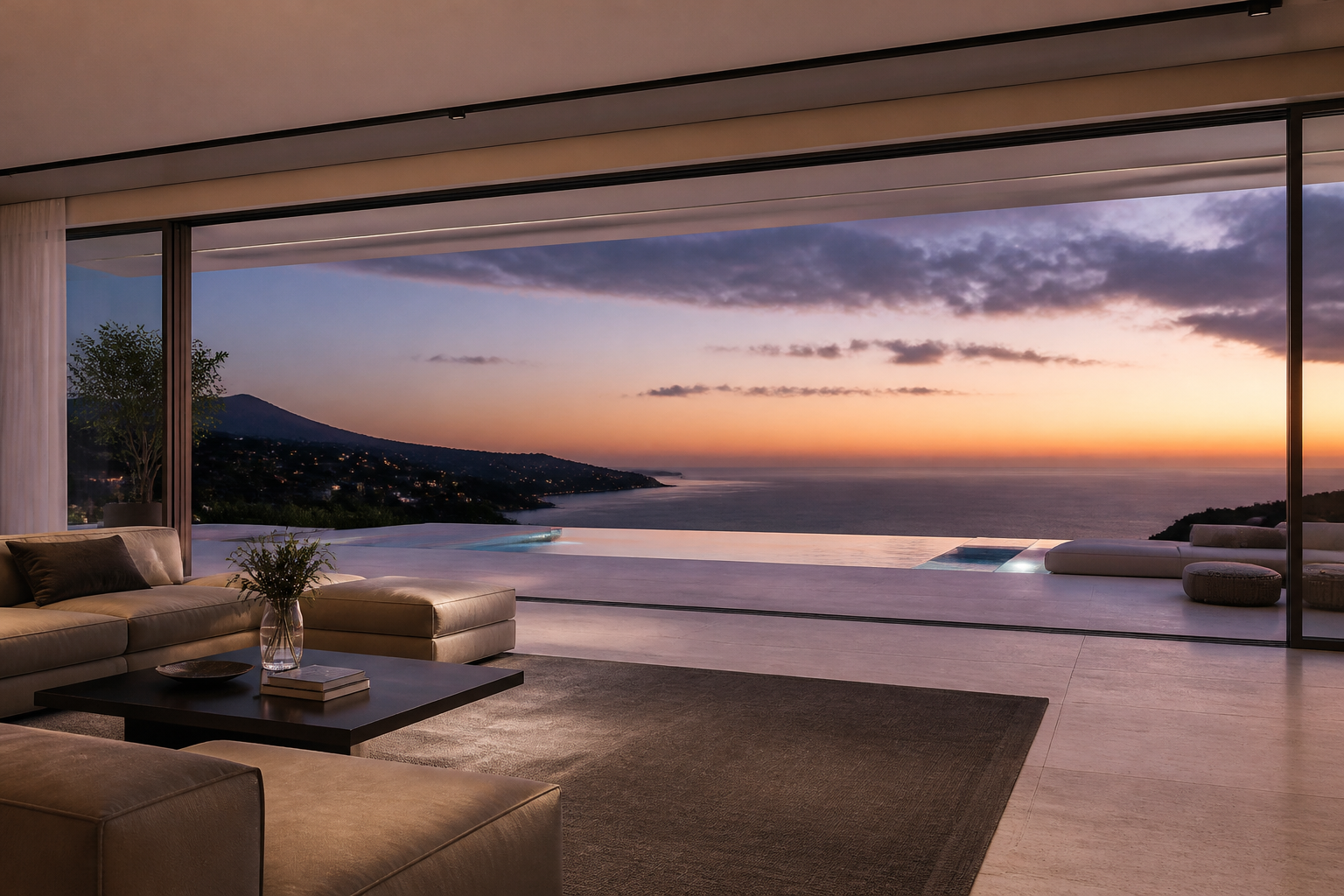

The VLX 138 Panoramic Sliding Door is a large-span aluminum slider built for homeowners in Houston who want entire walls of glass without compromising on thermal performance or structural integrity. With a 0.138-inch wall thickness and a maximum span of 36 feet, this door replaces a traditional wall with uninterrupted sightlines. Meridian Windows and Doors Houston is an authorized ViewLux installation partner, which means you’re getting the manufacturer’s product installed by a team held to the manufacturer’s own installation standards. We handle product ordering, delivery, and installation. Call (432) 278-2282 to schedule a free on-site measurement.

Call (432) 278-2282

Product Overview: VLX 138 Panoramic Sliding Door

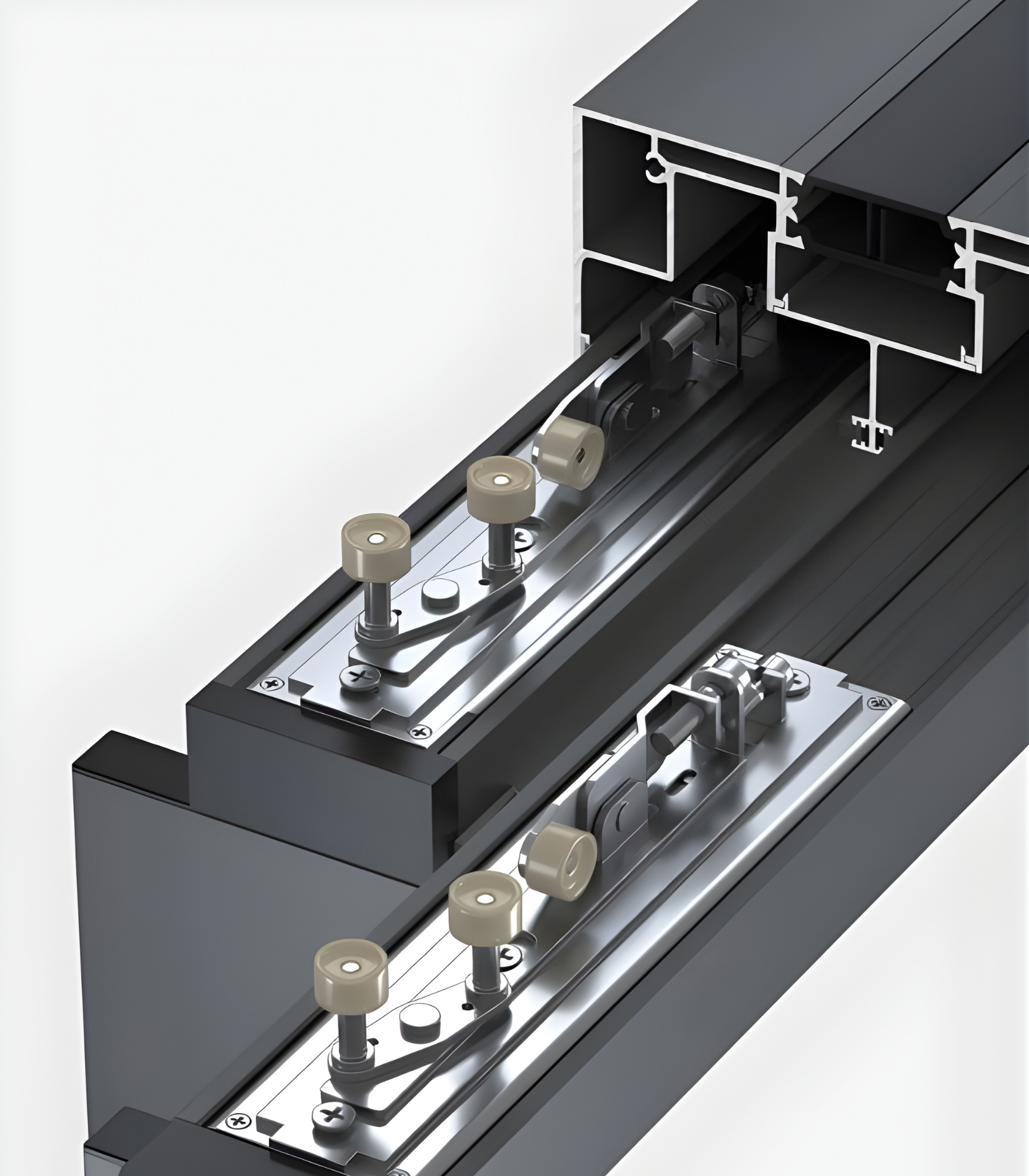

The VLX 138 is engineered around a simple idea: the frame should get out of the way. Its narrow 1.535-inch profile width keeps the focus on the glass, not the metal, which is why architects specify this series for modern builds in Houston’s Inner Loop, Memorial, and the Heights. The door rides on stainless steel bearings, which is a meaningful design choice. Over years of daily operation, stainless maintains a smooth glide that nylon or polymer rollers simply can’t match, even in Houston’s humidity and salt-adjacent air near Galveston Bay.

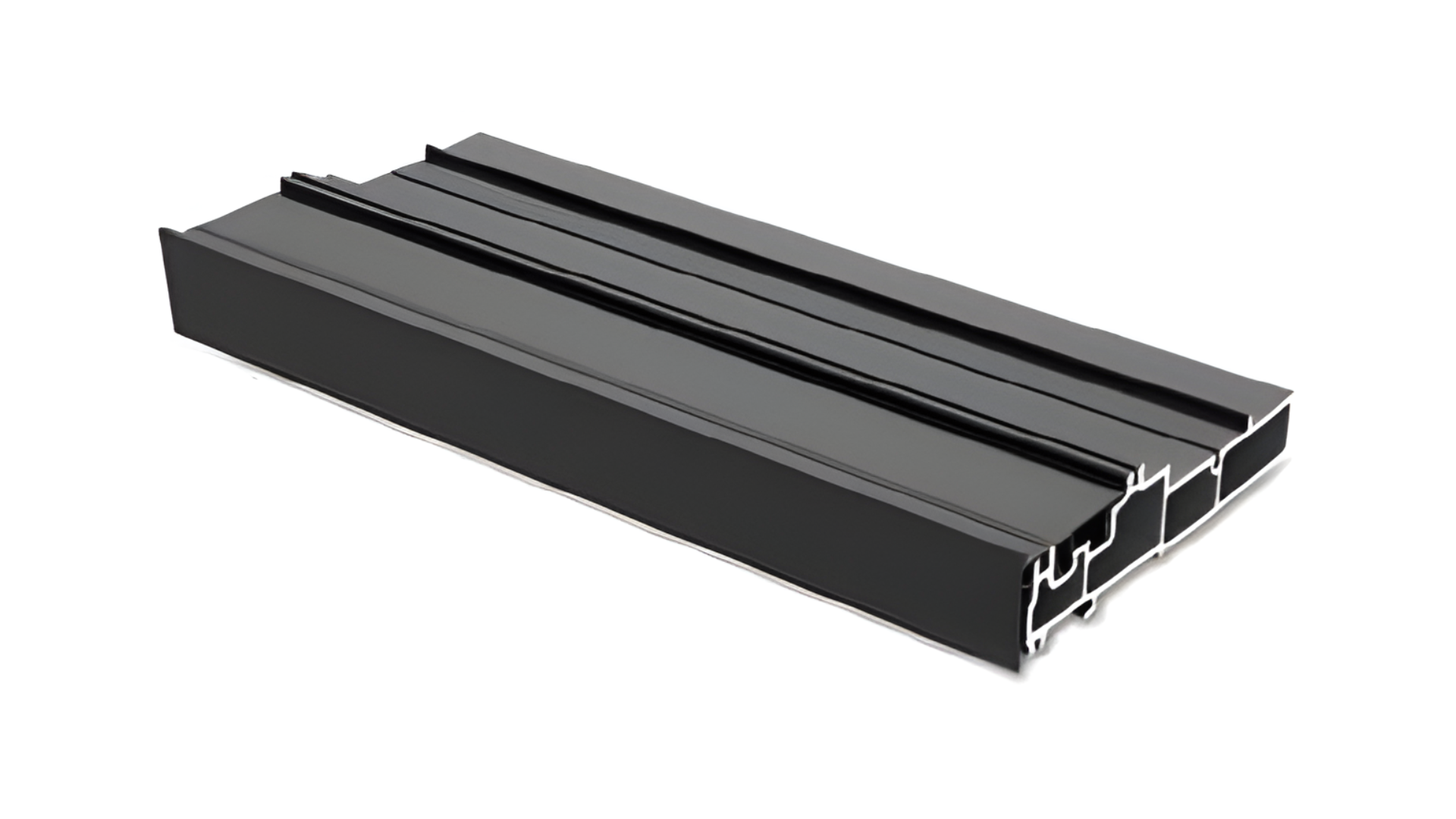

This is not a budget patio door. The VLX 138 is a luxury large-span panoramic slider, and the people who buy it are typically replacing either a fixed window wall or a dated multi-panel folding door. They want the view without the operational effort of folding panels. The engineering that matters here is in the frame extrusion itself. At 0.138 inches, the aluminum wall thickness delivers torsional rigidity across long panel runs. A thinner extrusion will flex when a 200-pound panel rolls across an opening. The 138 doesn’t. The track system is configurable at two, three, or four rails, so you can run as few or as many panels as your architecture calls for. And because Meridian Windows and Doors Houston is an authorized ViewLux partner, we don’t just sell the door. We size it, order it to spec, and install it under ViewLux’s warranty-safe installation protocols. One call at (432) 278-2282 gets the process started.

Technical Specifications

Every VLX 138 we order for Houston clients is configured to the specific opening, exposure, and finish requirement. Here are the raw specs in clear terms:

• Wall thickness: 0.138 inches, the thickest extrusion in the VLX residential line
• Profile width: 1.535 inches of visible frame at the interlock, keeping sightlines narrow
• Maximum span: up to 36 feet wide in a single continuous run, depending on panel count and glass weight
• Track configurations: 2-track, 3-track, and 4-track systems for flexible pocketing and ventilation
• Glass options: Clear, Low-E, Frosted, Obscure, Black Tint, Gray Tint
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Screen options: retractable screen or sliding screen, both flush-fit to the existing track

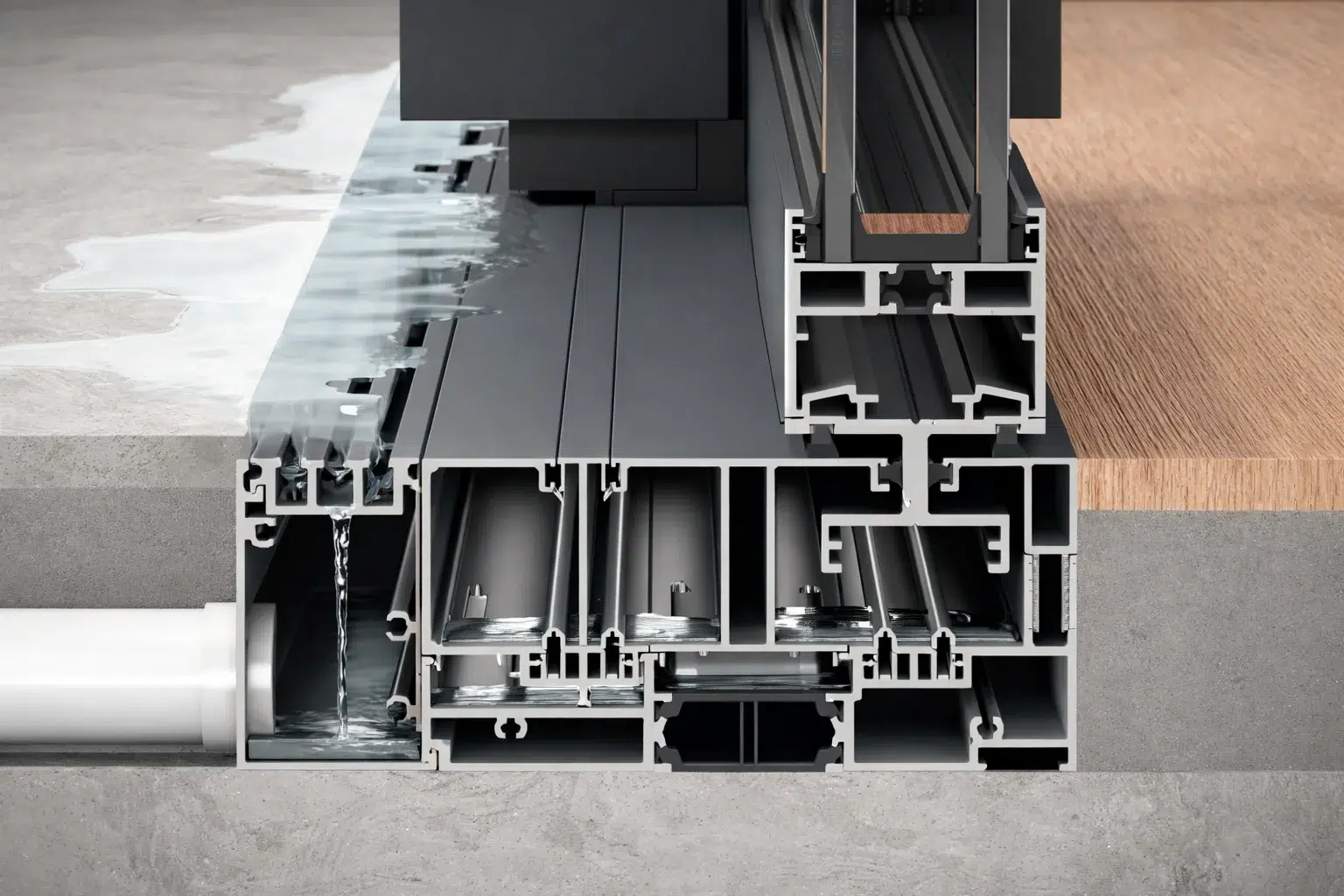

• Sill options: flush sill for zero-threshold transition, low-profile sill for weather resistance, recessed sill for masonry floors
• Performance: thermally broken frame for NFRC-rated energy performance, AAMA 2400/2410-compliant installation, AAMA 812 foam sealant on perimeter joints

Performance Features

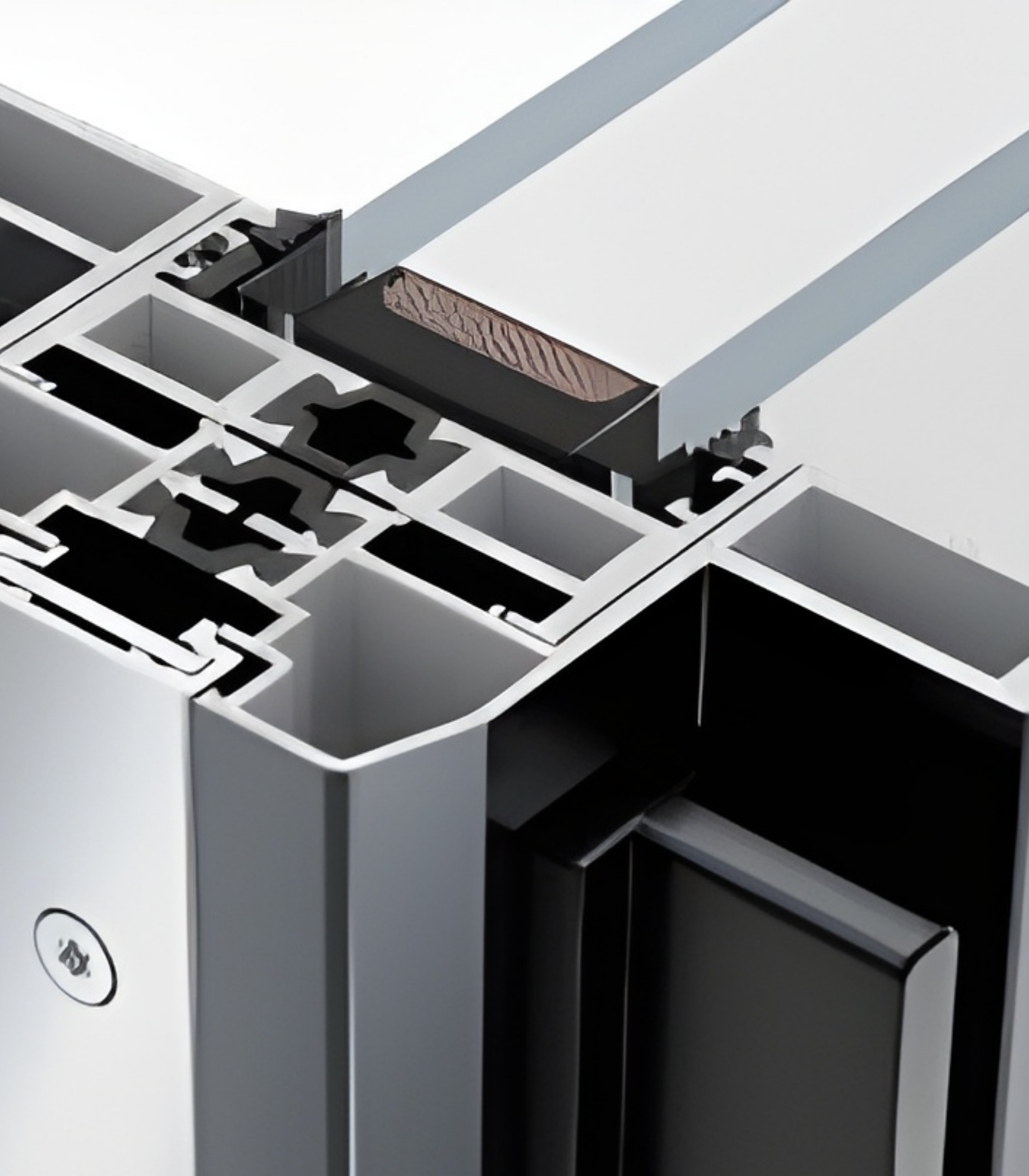

Thermal Efficiency – The VLX 138 is a thermally broken aluminum system. The interior and exterior aluminum profiles are separated by a thermal barrier, which prevents Houston’s summer heat from conducting directly through the frame. When paired with Low-E glass, the door achieves NFRC-rated performance that substantially reduces cooling loads on west-facing elevations. In Houston, where air conditioning runs nine months a year, this is real money.

Acoustic Performance – Laminated glass options are available for the VLX 138, and they make a difference you can feel. Homes near I-10, 610, or the Hardy Toll Road deal with constant road noise. An impact-rated laminated interlayer cuts mid-frequency sound transmission significantly. We’ve had clients in Garden Oaks and Timbergrove specifically request laminated glass on their VLX 138 orders for exactly this reason.

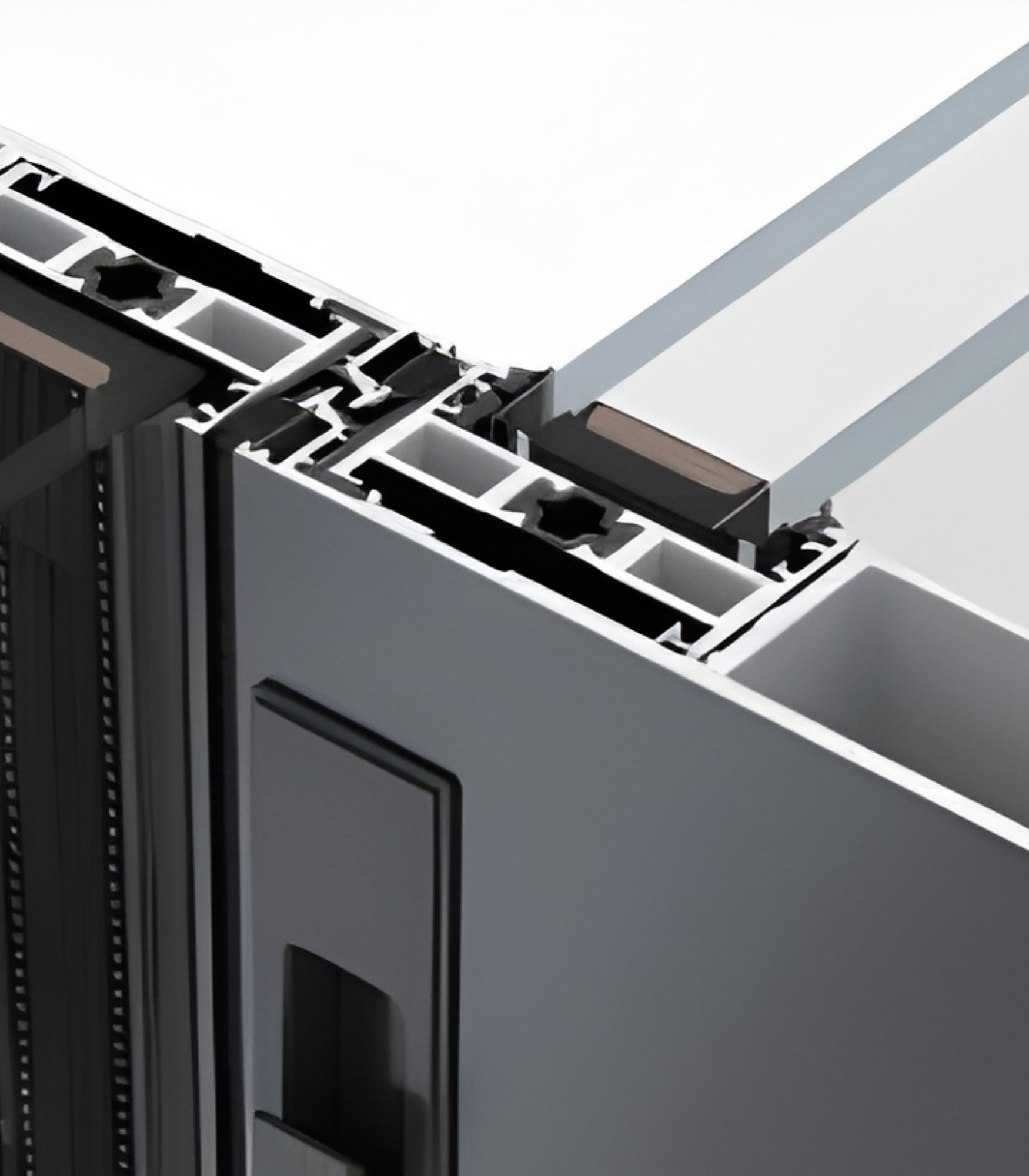

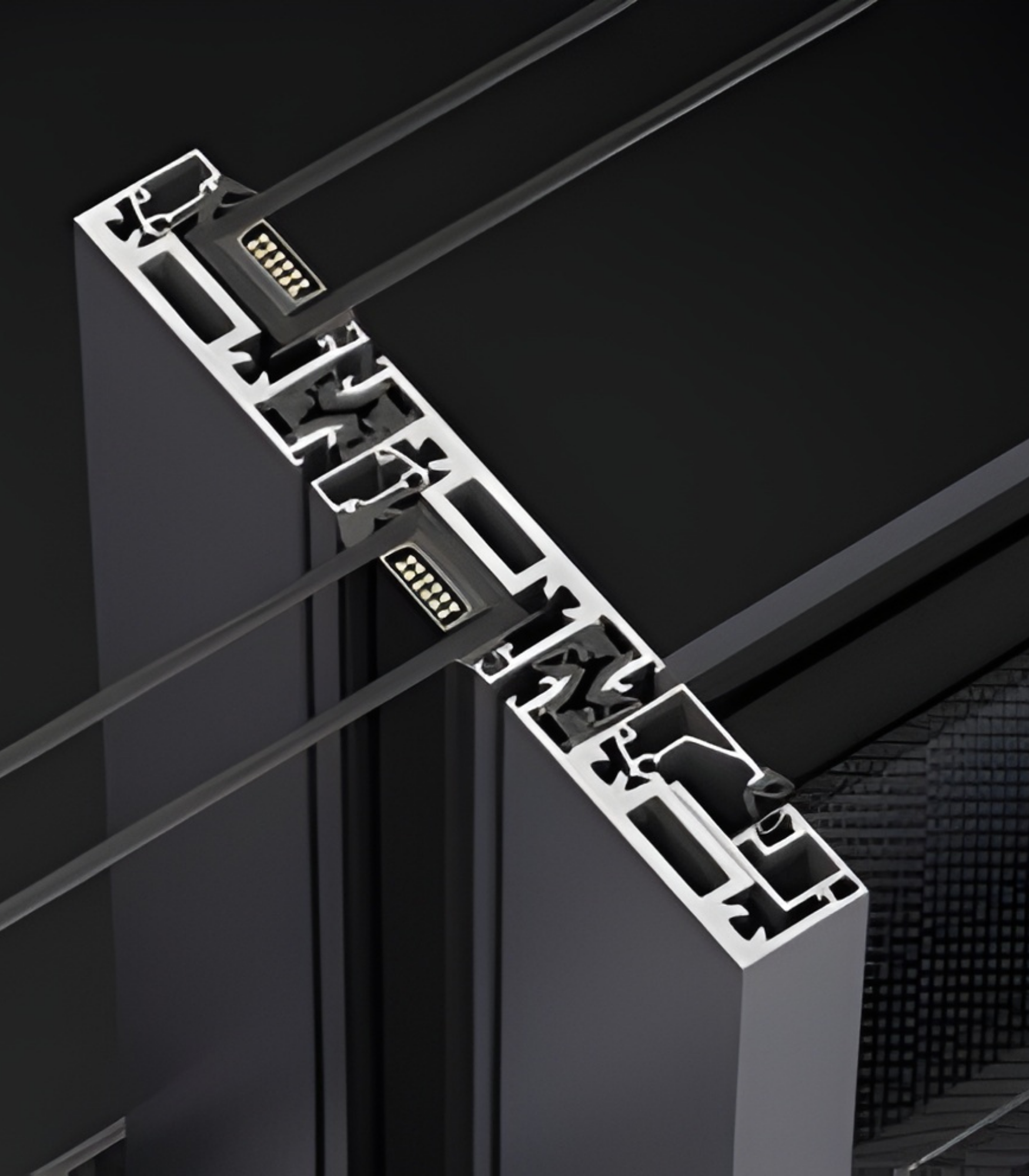

Airtightness and Weather Seal – The VLX 138 uses dual weather stripping at every interlock and frame junction. What this means in practice: when the door is closed, the panel edges compress against gaskets that stop air infiltration, not just water. Houston’s humid air stays outside. Air conditioning stays inside. The difference is noticeable the first August after installation.

Waterproofing – Meridian Windows and Doors Houston installs every VLX 138 with AAMA 812 low-expansion foam sealant on all perimeter joints, which is the standard specified in AAMA 2400/2410 installation compliance. In short, the opening gets sealed before the flashing goes up. During Houston’s afternoon thunderstorm season, that perimeter seal is what keeps water where it belongs: outside the building envelope.

Wind Resistance – The VLX 138 is wind-load rated for coastal and near-coastal exposure conditions. Houston building codes require wind-load compliance for fenestration products, and the 138 series meets those requirements when installed to spec. For homes in hurricane evacuation zones or wind-borne debris regions, impact-resistant laminated glass upgrades the door from compliant to protective.

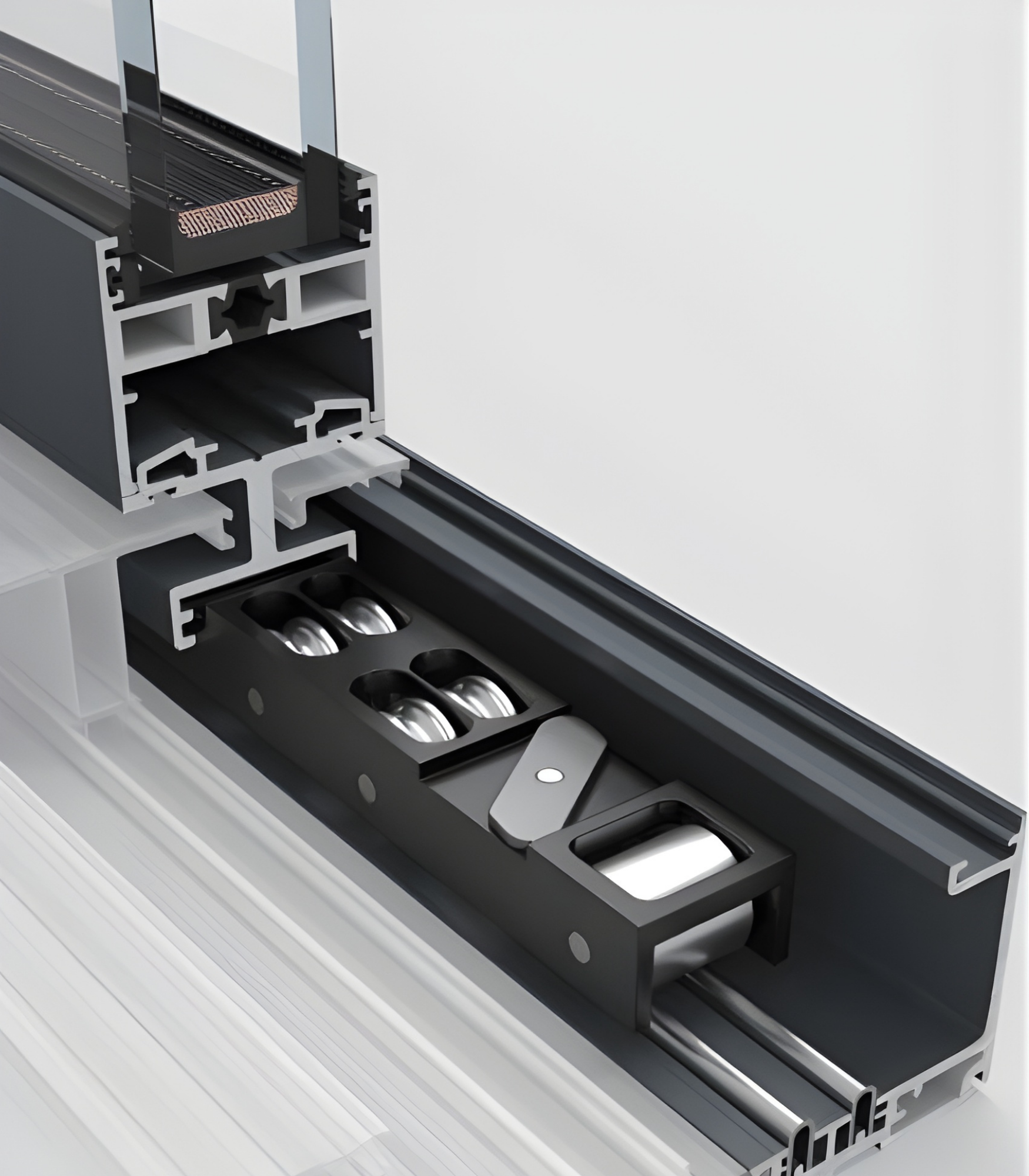

Security and Hardware – The VLX 138 uses a multi-point locking mechanism at the meeting stile. When you throw the handle, stainless steel locking pins engage at the top and bottom of the frame, not just in the middle. That’s a meaningful difference from older sliding doors with a single center latch. The stainless bearings in the track assembly also mean the door won’t develop that “sticky” spot on the track that so many older sliders do after ten years of Houston humidity.

Color and Glass Options

The VLX 138 comes in six finishes. Premium Black is the most popular choice in Houston’s newer modern builds, particularly where the door pairs with black-framed windows or a black standing-seam metal roof. Pure White skews toward traditional and transitional architecture, especially painted-brick homes in neighborhoods like West University or Bellaire. Anodized Silver reads industrial and pairs well with concrete floors and exposed steel. Bronze is the safest choice for homes with mixed exterior materials: it’s dark enough to anchor a facade without the starkness of black. Champagne has a warm metallic tone that we see most often on stucco homes from the 2000s in Sugar Land or Katy. Teak Wood is a woodgrain finish over aluminum, designed for homeowners who want the warmth of timber without rot, warping, or termite concerns in Houston’s climate.

Glass selection comes down to sun exposure and privacy. Clear glass is the default for full view and maximum light. Low-E glass is our standard recommendation for any VLX 138 that faces south or west, because afternoon sun in Houston will turn an untreated glass room into a greenhouse by 4 PM. Frosted and obscure glass make sense on bedroom baths, or on street-facing panels where you want light without sightlines. Black tint and gray tint are aesthetic first, performance second: they darken the view and reduce glare, which is useful on media rooms or north-facing elevations where heat gain isn’t the primary concern.

Installation by Meridian Windows and Doors Houston in Houston

Here’s what separates a door that sold well from a door that performs well for twenty years: the installation. Aluminum frame systems are forgiving because the material is engineered to tight tolerances, but those tolerances only mean something if the opening is prepped correctly, the door is leveled, and the perimeter is sealed per AAMA standards. Meridian Windows and Doors Houston installs the VLX 138 the same way every time.

Before we touch the opening, we inspect the substrate, the header, and the rough opening dimensions. A 36-foot door needs a header engineered for the load above it, and we verify that before the panels arrive. We then set the frame level, plumb, and square, no exceptions. An out-of-square frame on a four-panel slider means the panels will drift, the interlocks won’t line up, and the door will fight you every time you open it. After setting the frame, we apply AAMA 812 low-expansion foam sealant to every perimeter joint, followed by flashing and drainage per AAMA 2400/2410 requirements. We then run a water test on the sill before the panels go in. Once the panels are set and adjusted, we test the operation, verify the interlocks, and check for any daylight around the seals. We then walk the homeowner through operation and maintenance and clean the site.

Houston’s building codes and climate both matter here. Houston is wet, the clay soil moves, and the wind blows harder during storm season than most people realize. An improperly sealed door in Houston isn’t a cosmetic problem. It’s a slow water intrusion problem that shows up as mold, swollen drywall, or rotted flooring three years after install. And here’s what hurts the most: ViewLux, like every major aluminum door manufacturer, will not honor a warranty claim caused by installation error. Saving money on a handyman install of a door this size is a false economy. We’ve seen it. Our clients don’t risk it because Meridian Windows and Doors Houston is an authorized ViewLux partner, which means our installs are held to a standard the manufacturer will stand behind. Call (432) 278-2282 to talk through your project.

Frequently Asked Questions: VLX 138 Panoramic Sliding Door

What is the lead time for the VLX 138 Panoramic Sliding Door? Custom-configured VLX 138 orders typically run 6 to 10 weeks from deposit to delivery in Houston, depending on glass type, finish, and track configuration. Standard configs in popular finishes sometimes ship faster. We’ll give you a firm timeline when we quote your project. Call (432) 278-2282 for current lead times and availability.

Does the VLX 138 qualify for energy tax credits? The VLX 138 can qualify for the federal energy efficient home improvement credit when configured with qualifying Low-E glass and thermally broken frames, but eligibility depends on the specific glass package and your project’s total energy compliance. We’ll provide the NFRC ratings documentation for your configuration so your tax professional can confirm eligibility. Call (432) 278-2282 to discuss glass packages.

What warranty comes with the Panoramic Sliding Door? ViewLux provides a limited manufacturer warranty on the VLX 138 frame and hardware, and the glass carries its own manufacturer warranty for seal failure. The critical point: manufacturer warranties are contingent on installation by an authorized partner. Meridian Windows and Doors Houston installs every VLX 138 per ViewLux’s installation requirements, which keeps your warranty intact. Call (432) 278-2282 if you have warranty questions on a specific configuration.

Can I customize the size of the VLX 138? Yes, within the structural limit of the system. The VLX 138 runs up to 36 feet wide in a single continuous span, but the practical maximum for your home depends on the header above the opening, the number of panels, and the glass package weight. We work with your architect or contractor to verify the opening before we order. Call (432) 278-2282 to discuss your opening dimensions.

How do I maintain aluminum frames in Houston’s climate? Aluminum frames don’t rust, warp, or absorb moisture, but Houston’s humidity and salt air near the coast do leave residue over time. We recommend washing the frame and track with mild soap and water every two to three months, cleaning the stainless track bearings annually, and checking the weather seals each spring. Frame finishes never need repainting or resealing. Call (432) 278-2282 with maintenance questions anytime.

Get a Quote: VLX 138 Panoramic Sliding Door in Houston

If you’re planning a wall-to-glass transformation in Houston, start with the numbers. We’ll measure your opening, walk you through track configurations and glass packages, and give you a written line-item quote with no surprises. Call Meridian Windows and Doors Houston at (432) 278-2282 to schedule your free on-site measurement and project consultation.

Written by the team at Meridian Windows and Doors Houston, authorized ViewLux installation partner serving Houston, TX and surrounding communities.
