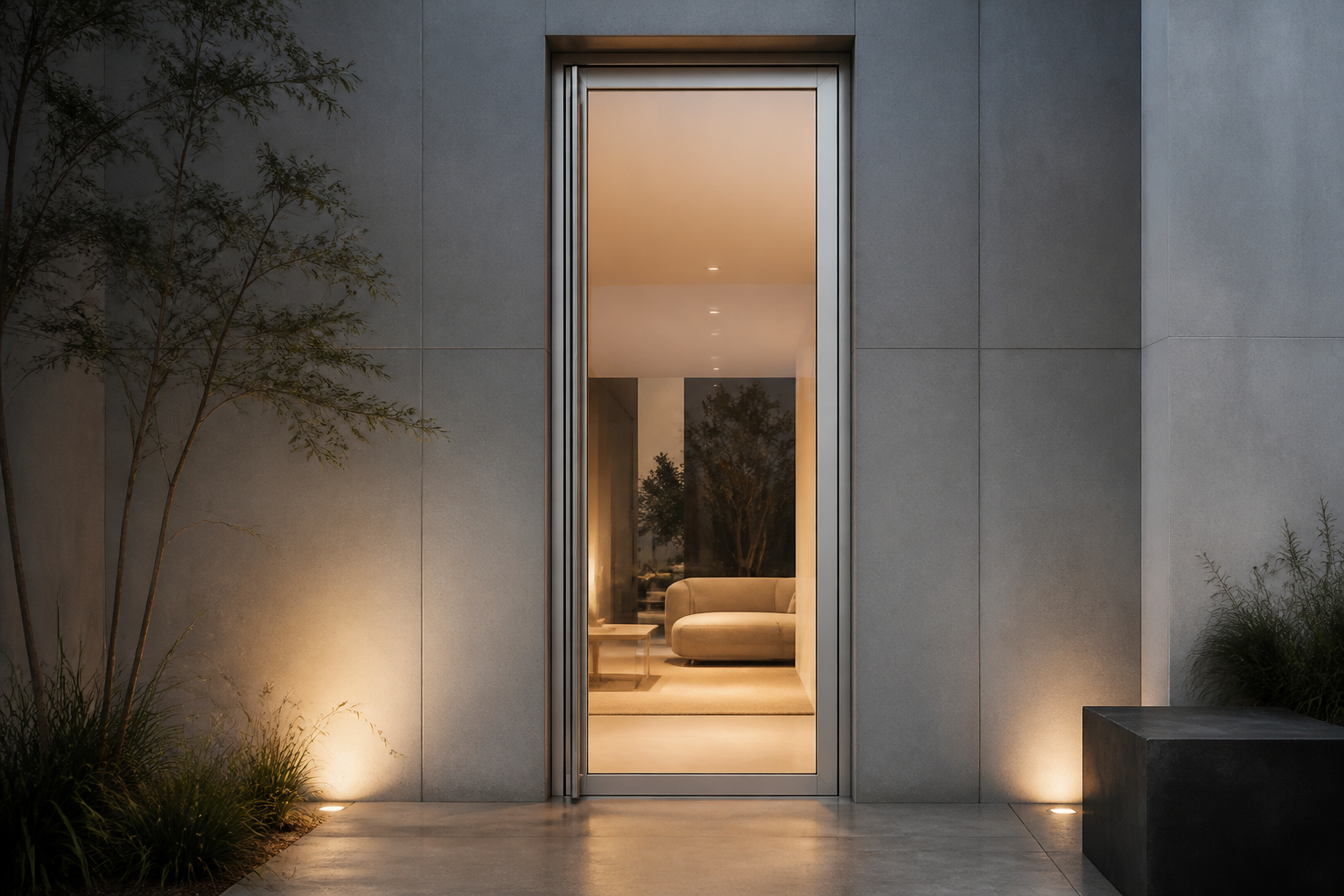

The VLX 100 Pivot Door is a heavy-duty aluminum entry door that rotates on a vertical axis instead of traditional side hinges. It’s built for homeowners in Houston who want an architectural statement at the front entrance: oversized glass, clean sightlines, and a door that feels substantial when it moves. A pivot door this size is not a casual purchase, and installation quality decides whether you get decades of smooth operation or a door that sags within two years. Meridian Windows and Doors Houston is an authorized ViewLux installation partner, which means we sell, size, and install this door to the manufacturer’s engineering requirements. Call (432) 278-2282 to talk about your project.

Call (432) 278-2282

Product Overview – VLX 100 Pivot Door

Pivot doors have become the defining feature of high-end custom homes across Houston, from Memorial to River Oaks to The Heights. The VLX 100 earns its place at the front of a house because it does what a conventional hinged door cannot: carry a slab up to 60 inches wide and 120 inches tall without pulling on the frame. The weight loads through the floor pivot and top pivot bearing, not through side hinges, so the door stays square and true even at sizes that would destroy a traditional hinge setup.

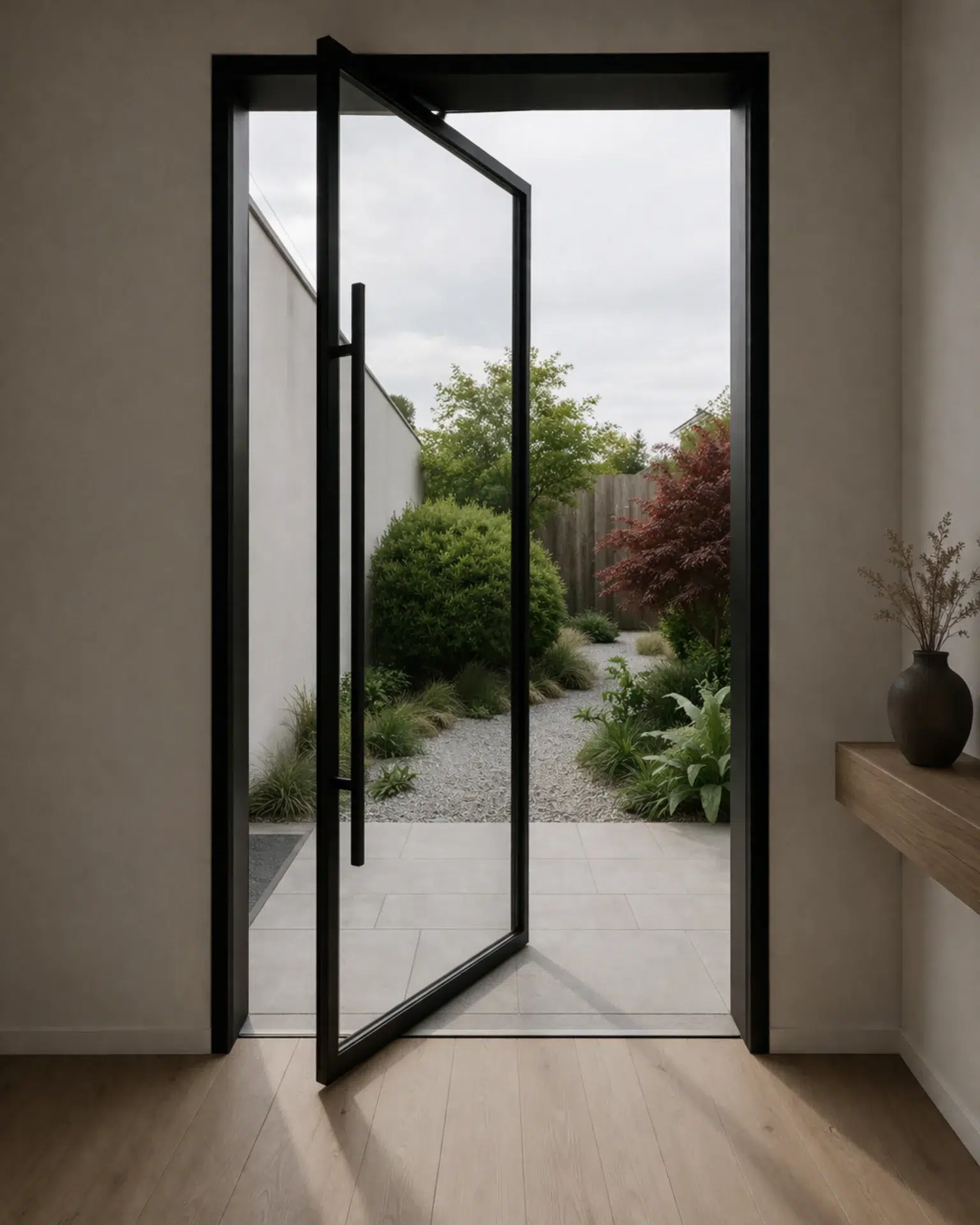

The construction is heavy-duty aluminum with a 0.098-inch wall thickness and a 2.56-inch profile width. That’s a frame built to hold oversized lites of glass, resist Houston’s humidity cycles, and shrug off the thermal expansion that warps thinner extrusions. The door is specified as a center-axis pivot configuration, which means you get a balanced swing feel and a dramatic pivot point offset from the edge. The oversized glass panel is the point of the design. It floods an entry hall with natural light and gives the front elevation a gallery-like presence.

Who is this door for? Houston homeowners building or renovating a modern or transitional home, architects specifying a front entry with presence, and anyone who wants the single most memorable feature of the house to be the first thing a guest touches. If you’re replacing a standard 36-inch door, you’ll need a conversation about rough opening sizing and structural framing before you order. Our team handles that assessment.

Technical Specifications

• Frame material: Heavy-duty extruded aluminum, 0.098″ wall thickness
• Profile width: 2.56 inches
• Maximum slab size: 60 inches wide × 120 inches tall
• Pivot configuration: Center-axis pivot, floor and top bearing
• Glass options: Clear, Frosted, Obscure, Low-E, Tempered, Laminated
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Thermal performance: Thermal break technology, NFRC-rated
• Weather sealing: AAMA 812-compliant low-expansion foam on all perimeter joints
• Installation standard: AAMA 2400/2410
• Wind rating: Engineered for Houston-area wind loads; laminated impact option available

These numbers matter because a pivot door is a structural element, not a decorative one. The 0.098-inch extrusion wall is what lets the frame carry a 120-inch-tall glass lite without bowing. The 2.56-inch profile depth creates the thermal-break cavity that keeps your air conditioning inside where it belongs.

Performance Features

Thermal Efficiency – The VLX 100 frame includes a thermal break that separates the exterior and interior aluminum faces. In a Houston summer, an unbroken aluminum frame conducts heat straight into your foyer. The thermal break interrupts that path. Combined with Low-E glass, this door is NFRC-rated for energy performance and keeps your cooling load in check.

Acoustic Performance – If you live within earshot of I-10, 610, or Beltway 8, road noise is a daily reality. The laminated glass option on the VLX 100 adds a sound-dampening interlayer that measurably reduces transmitted noise. Paired with the AAMA 812 foam perimeter seal we install on every job, the door cuts more outside sound than you’d expect from an entry system.

Airtightness & Weather Seal – Houston air is humid, hot, and relentless. Every joint on the VLX 100 perimeter gets low-expansion AAMA 812 foam sealant during installation. That seal is what stops conditioned air from leaking out and outside air from seeping in around the frame. It’s also what keeps your energy bill from climbing every August.

Waterproofing – A pivot door sits at the most exposed point of your house. The VLX 100 is engineered with integrated drainage paths and sill design that directs water away from the interior. Our installation includes a final water test on the sill and perimeter before we call the job done. In a city that gets 50 inches of rain a year, this is not optional.

Wind Resistance – Houston building departments require entry doors to resist wind loads that vary by zone and exposure. The VLX 100’s structural aluminum frame and pivot hardware are rated for the wind conditions we see here, including the gust-driven rains that come with Gulf storms. The impact-resistant laminated glass option adds a layer of protection against wind-borne debris.

Security & Hardware – Pivot doors carry a lot of mass, which is its own deterrent, but hardware selection matters. The VLX 100 works with multipoint locking systems that engage at multiple points along the slab edge. The aluminum frame accepts reinforced strike plates. Security is a function of how the hardware is set within a properly squared frame, which is exactly how Meridian Windows and Doors Houston installs every unit.

Color & Glass Options

The VLX 100 comes in six finishes. Premium Black is the most requested finish in Houston’s modern builds: it reads sharp against stucco, brick, and limestone and hides the grime that Houston air deposits on exterior surfaces. Pure White suits transitional and coastal-style homes, especially in areas like Clear Lake or League City where lighter facades dominate. Anodized Silver has a machined, architectural look that pairs well with steel and concrete. Bronze gives you warmth without heaviness, popular in traditional two-story builds in Bellaire and Sugar Land. Champagne is a softer metallic that works on Mediterranean and French-influenced elevations. Teak Wood is a wood-look finish that gives the texture of timber without the maintenance nightmares wood doors face in Houston humidity.

Glass selection drives both privacy and performance. Low-E is the default choice for west-facing entries where afternoon sun hits hard. Frosted and Obscure glass give you light without visibility: good for entries close to the street or neighbors. Tempered glass is safety-rated and required by code for large door lites. Laminated glass combines impact resistance with sound reduction, the right pick for homes near highways or in wind-exposed lots.

Installation by Meridian Windows and Doors Houston in Houston

We install the VLX 100 Pivot Door to AAMA 2400/2410 standards, which is the installation spec the manufacturer requires for warranty validity. That’s the point most homeowners miss: a pivot door’s long-term performance depends on installation quality more than any other factor. A door set half a degree out of plumb will drift, bind, or sag. A perimeter that isn’t foam-sealed will leak air and water. The manufacturer warranty doesn’t cover installation errors. That’s why ViewLux products sold through authorized partners like Meridian Windows and Doors Houston get installed by a team that does this every week.

Our process starts with a pre-install inspection of the rough opening. We check the structural framing behind the opening, because a 60-by-120-inch slab needs a header and king studs that can carry the load without flexing. In Houston, we also check for any existing water intrusion or rot around the old door, which is common in slab-on-grade homes where thresholds sit close to grade. We correct those issues before the new door goes in.

On install day, we set the door level, plumb, and square, then shim and fasten per the manufacturer’s schedule. Every perimeter joint gets AAMA 812 low-expansion foam sealant: full-depth, continuous, no gaps. We install the pivot hardware per the engineering drawings, then run a water test on the sill and lower corners. The last step is cleanup, including removal of the old door and all packaging. You’re left with a functioning door and nothing to haul to the curb.

Houston’s climate makes one more point worth stating: aluminum expands and contracts with temperature, and a dark finish on a south-facing elevation in August will get hot. The VLX 100’s thermal break and our installation method accommodate that movement. A door installed without the right clearances will bind in summer and rattle in winter. This is precisely why we don’t recommend a general handyman for this product.

Frequently Asked Questions – VLX 100 Pivot Door

What is the lead time for the VLX 100 Pivot Door? Most VLX 100 orders are produced and delivered to Houston within 4 to 8 weeks from final measurement and finish confirmation. Custom sizes or laminated impact glass can extend lead time. Call (432) 278-2282 and we’ll give you a current production schedule for your exact configuration.

Does the VLX 100 qualify for energy tax credits? The VLX 100 with Low-E glass can qualify for federal energy efficiency credits depending on the specific glass package and the final installed U-factor and solar heat gain coefficient. We’ll provide the documentation you need for your tax preparer. Call (432) 278-2282 with your glass selection and we’ll verify eligibility before you order.

What warranty comes with the VLX 100 Pivot Door? The VLX 100 carries a manufacturer warranty on the frame, glass, and hardware, with coverage terms that depend on the finish and glass package selected. Installation workmanship by Meridian Windows and Doors Houston is covered by our own workmanship warranty. We will walk you through exact coverage terms before you sign. Call (432) 278-2282 for warranty details on your configuration.

Can I customize the size of the VLX 100 Pivot Door? Yes, up to the maximum slab dimensions of 60 inches wide by 120 inches tall. If your opening is larger than that, we’ll talk through options for transoms, sidelites, or a different product. Custom sizing requires a site measurement by our Houston team before the order is released to production. Call (432) 278-2282 to schedule a measurement.

How do I maintain aluminum pivot door frames? Wash the frame and glass with mild soap and water twice a year, and keep the bottom track and floor pivot clear of debris. In Houston’s humidity, check the weatherstripping annually and re-lubricate the pivot bearings per the manufacturer’s schedule. If you ever notice a change in how the door swings, call (432) 278-2282 before the problem gets worse: pivot adjustments are precise work.

Get a Quote – VLX 100 Pivot Door in Houston

If you’re planning a new build or replacing a front door and the VLX 100 is on your shortlist, the next step is a conversation. Call Meridian Windows and Doors Houston at (432) 278-2282 to schedule a free on-site measurement. We’ll spec the exact size, glass, finish, and hardware for your home, then give you a written line-item quote before anything is ordered.

Written by the team at Meridian Windows and Doors Houston, authorized ViewLux installation partner serving Houston, TX.
